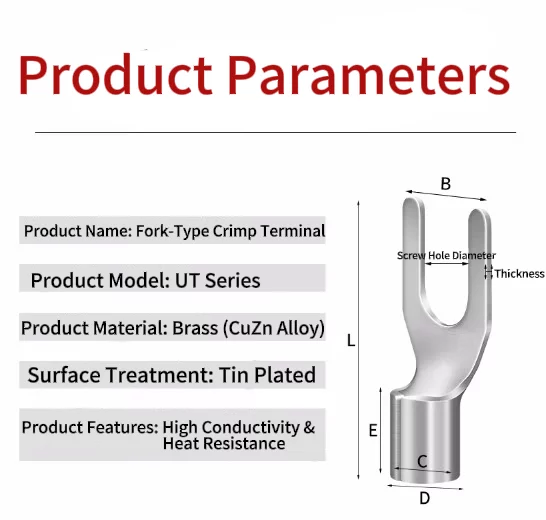

| Model | C | D | E | L | B | Screw Hole Diameter | Thickness |
| UT0.5-3 | 1.2 | 2 | 4.5 | 12.2 | 5.4 | 3 | 0.3 |
| UT0.5-4 | 1.2 | 2 | 4.5 | 13.6 | 6.8 | 4 | 0.3 |
| UT1-3 | 1.8 | 2 | 5 | 14.3 | 5.5 | 3 | 0.5 |
| UT1-4 | 1.8 | 3 | 5 | 14.8 | 6.9 | 4 | 0.5 |
| UT1-5 | 1.8 | 3 | 5 | 17.7 | 9.5 | 5 | 0.5 |
| UT1-6 | 1.8 | 3 | 5 | 19.6 | 10.7 | 6 | 0.5 |
| UT1.5-3 | 2 | 3.3 | 5 | 14.3 | 5.5 | 3 | 0.5 |
| UT1.5-4 | 2 | 3.3 | 5 | 15.6 | 7.2 | 4 | 0.5 |
| UT1.5-5 | 2 | 3.3 | 5 | 17 | 8.7 | 5 | 0.5 |
| UT1.5-6 | 2 | 3.3 | 5 | 20.3 | 10.1 | 6 | 0.5 |
| UT1.5-8 | 2 | 3.3 | 5 | 23 | 13.4 | 8 | 0.5 |
| UT1.5-10 | 2 | 3.3 | 5 | 26.5 | 15.5 | 10 | 0.5 |
| UT2.5-3 | 2.9 | 3.9 | 5 | 14.9 | 5.9 | 3 | 0.5 |
| UT2.5-4 | 2.9 | 3.9 | 5 | 16.5 | 7.3 | 4 | 0.5 |
| UT2.5-5 | 2.9 | 3.9 | 5 | 18.2 | 9.8 | 5 | 0.5 |
| UT2.5-6 | 2.9 | 3.9 | 5 | 20 | 9.8 | 6 | 0.5 |
| UT2.5-8 | 2.9 | 3.9 | 5 | 21.9 | 13.5 | 8 | 0.5 |
| UT2.5-10 | 2.9 | 3.9 | 5 | 27.7 | 15.6 | 10 | 0.5 |
| UT2.5-12 | 2.9 | 3.9 | 5 | 29.3 | 18 | 12.4 | 0.6 |
| UT4-4 | 3.6 | 4.8 | 6.2 | 18 | 7.8 | 4 | 0.6 |
| UT4-5 | 3.6 | 4.8 | 6.2 | 19.5 | 8.8 | 5 | 0.6 |
| UT4-6 | 3.6 | 4.8 | 6.2 | 21.5 | 10.5 | 6 | 0.6 |
| UT4-8 | 3.6 | 4.8 | 6.2 | 24 | 13.6 | 8 | 0.6 |
| UT4-10 | 3.6 | 4.8 | 6.2 | 29.8 | 17.5 | 10 | 0.6 |
| UT4-12 | 3.6 | 4.8 | 6.2 | 30.5 | 18 | 12 | 0.7 |
| UT6-4 | 4.4 | 5.8 | 6.2 | 19.7 | 8 | 4 | 0.6 |
| UT6-5 | 4.4 | 5.8 | 6.2 | 21.2 | 9.3 | 5 | 0.6 |
| UT6-6 | 4.4 | 5.8 | 6.2 | 22.4 | 10.5 | 6 | 0.6 |
| UT6-8 | 4.4 | 5.8 | 6.2 | 25 | 14 | 8 | 0.6 |
| UT6-10 | 4.4 | 5.8 | 6.2 | 28.6 | 18.8 | 10 | 0.6 |
| UT6-12 | 4.4 | 5.8 | 6.2 | 28.8 | 18.8 | 12 | 0.6 |
| UT6-14 | 4.4 | 5.8 | 6.2 | 34 | 24 | 14 | 0.6 |
| UT6-16 | 4.4 | 5.8 | 6.2 | 34.3 | 24 | 16 | 0.6 |
| UT6-18 | 4.4 | 5.8 | 6.2 | 42.5 | 28.5 | 18 | 0.6 |
| UT6-20 | 4.4 | 5.8 | 6.2 | 42.5 | 28.5 | 20 | 0.6 |
| UT6-22 | 4.4 | 5.8 | 6.2 | 49.8 | 35 | 22 | 0.6 |
| UT6-24 | 4.4 | 5.8 | 6.2 | 49.8 | 35 | 24 | 0.6 |
| UT10-4 | 5.5 | 7.4 | 8.8 | 23.7 | 9.3 | 4 | 1 |
| UT10-5 | 5.5 | 7.4 | 8.8 | 23.8 | 9.3 | 5 | 1 |
| UT10-6 | 5.5 | 7.4 | 8.8 | 24.4 | 11.4 | 6 | 1 |
| UT10-8 | 5.5 | 7.4 | 8.8 | 27.6 | 13.9 | 8 | 1 |
| UT10-10 | 5.5 | 7.4 | 8.8 | 29.8 | 17.5 | 10 | 1 |
| UT10-12 | 5.5 | 7.4 | 8.8 | 29.4 | 17.4 | 12 | 1 |
| UT10-14 | 5.5 | 7.4 | 8.8 | 37 | 24.5 | 14 | 1 |
| UT10-16 | 5.5 | 7.4 | 8.8 | 36.7 | 24.5 | 16 | 1 |
| UT10-18 | 5.5 | 7.4 | 8.8 | 42.5 | 28.5 | 18 | 1 |
| UT10-20 | 5.5 | 7.4 | 8.8 | 42.5 | 28.5 | 20 | 1 |
| UT10-22 | 5.5 | 7.4 | 8.8 | 49.3 | 34.5 | 22 | 1 |
| UT10-24 | 5.5 | 7.4 | 8.8 | 49.3 | 34.5 | 24 | 1 |
