SV

Variety of Specifications:

Covers multiple conductor sections and corresponding bolt sizes, with detailed dimensional parameters for each specification.

Color Differentiation:

Available in multiple colors for easy circuit identification and wiring organization.

Insulated Design:

Features insulated sleeves to prevent short circuits and ensure safe use.

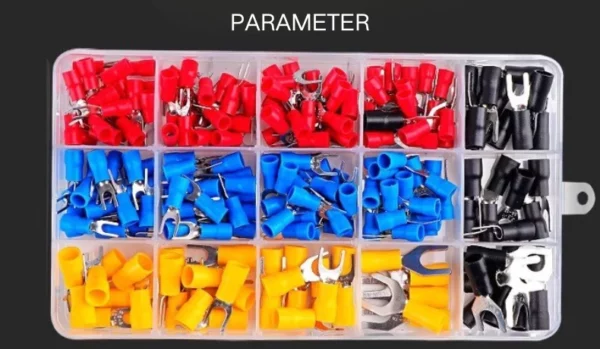

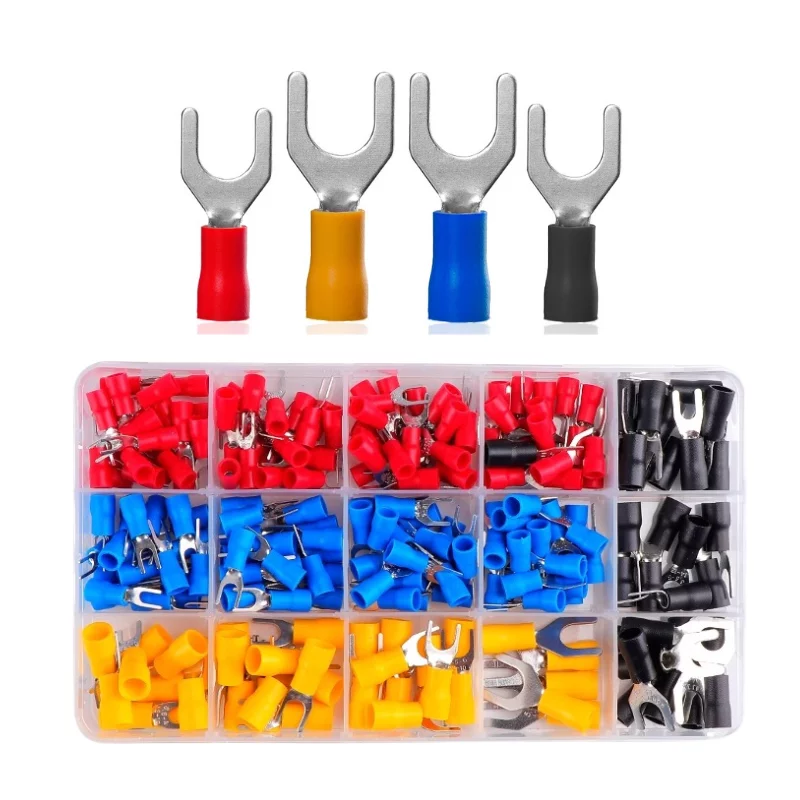

Quantity and Kit Configuration:

Comes in a kit with various quantities of each terminal type, meeting diverse wiring needs, and is equipped with a crimping tool for convenient installation.

Electrical Performance:

Different conductor sections correspond to different maximum currents , ensuring stable electrical conduction.

Application Convenience:

Helps identify circuits clearly at a glance, making wiring organization and maintenance easier.

COLOR	MODEL NUMBER	QUANTITY	WIRING RANGE	SCREW	MATERIAL
RED	SV1.25-3	20	0.5-1.5mm²	M3	Nickel Plated Brass
RED	SV1.25-4	20	0.5-1.5mm²	M4	Nickel Plated Brass
RED	SV1.25-5	20	0.5-1.5mm²	M5	Nickel Plated Brass
RED	SV1.25-6	20	0.5-1.5mm²	M6	Nickel Plated Brass
BLUE	SV2-3	20	1.0-2.5mm	M3	Nickel Plated Brass
BLUE	SV2-4	20	1.0-2.5mm²	M4	Nickel Plated Brass
BLUE	SV2-5	20	1.0-2.5mm²	M5	Nickel Plated Brass
BLUE	SV2-6	10	1.0-2.5mm²	M6	Nickel Plated Brass
BLACK	SV3.5-4	10	2.5-4.0mm²	M4	Nickel Plated Brass
BLACK	SV3.5-5	10	2.5-4.0mm²	M5	Nickel Plated Brass
BLACK	SV3.5-6	10	2.5-4.0mm²	M6	Nickel Plated Brass
YELLOW	SV5.5-4	10	4.0-6.0mm²	M4	Nickel Plated Brass
YELLOW	SV5.5-5	10	4.0-6.0mm²	M5	Nickel Plated Brass
YELLOW	SV5.5-6	10	4.0-6.0mm²	M6	Nickel Plated Brass
YELLOW	SV5.5-8	5	4.0-6.0mm²	M8	Nickel Plated Brass
	Plastic Box	1

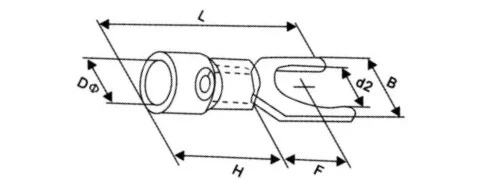

ITEM NO	Screw	d2(mm)	B	L	F	H	D中	color	Description
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10.0	4.3	● red	Lead Section: 0.5-1.5mm² (A.W.G.22-16) Max Current:lmax=19A Material:Copper Thickness:0.7mm
SV 1.25-3.5S	#6	3.7	5.7	21.2	6.5
SV 1.25-3.5L	#6	3.7	6.4	21.2	6.5
SV 1.25-4S	#8	4.3	6.4	21.2	6.5
SV 1.25-4M	#8	4.3	7.2	21.2	6.5
SV 1.25-4L	#8	4.3	8.1	21.2	6.5
SV 1.25-5S	#10	5.3	8.1	21.2	6.5
SV 1.25-5L	#10	5.3	9.5	21.2	6.5
SV 1.25-6S	1/4	6.5	9.5	21.2	6.5
SV 1.25-6L	1/4	6.5	12.0	21.2	11.0
SV 1.25-8	5/16	8.5	14.0	29.0	12.5
SV 2-3	#4	3.2	5.7	21.2	6.5	10.0	4.9	● blue	Lead Section: 1.5-2.5mm² (A.W.G.16-14) Max Current:lmax=27A Material:Copper Thickness:0.8mm
SV 2-3.5S	#6	3.7	5.7	21.2	6.5
SV 2-3.5L	#6	3.7	6.4	21.2	6.5
SV 2-4S	#8	4.3	6.4	21.2	6.5
SV 2-4M	#8	4.3	7.2	21.2	6.5
SV 2-4L	#8	4.3	8.1	21.2	6.5
SV 2-5S	#10	5.3	8.1	21.2	6.5
SV 2-5L	#10	5.3	9.5	21.2	6.5
SV 2-6S	1/4	6.5	9.5	21.2	6.5
SV 2-6L	1/4	6.5	12.0	27.2	11.0
SV 2-8	5/16	8.5	14.0	29.0	12.5
SV 3.5-3.5	#4	3.7	5.7	24.8	7.0	12.5	6.2	● black	Lead Section: 2.5-4mm² (A.W.G.14-12) Max Current:lmax=37A Material:Copper Thickness:1.0mm
SV 3.5-4	#8	4.3	8.0	24.8	7.0
SV 3.5-5S	#10	5.3	8.0	24.8	7.0
SV 3.5-6	1/4	6.5	12.0	28.0	12.1
SV 3.5-6S	1/4	6.5	9.0	25.2	7.5
SV 5.5-3.5	#6	3.7	8.3	25.2	7.5	12.5	6.7	Yellow	Lead Section: 4-6mm² (A.WG.12-10) Max Currentlmax=48A Material:Copper Thickness:1.0mm
SV 5.5-4S	#8	4.3	8.3	25.2	7.5
SV 5.5-4L	#8	4.3	9.0	25.2	7.5
SV 5.5-5	#10	5.3	9.0	25.2	7.5
SV 5.5-6S	1/4	6.5	9.0	25.2	7.5
SV 5.5-6L	1/4	6.5	12.0	31.2	12.0
SV 5.5-8	5/16	8.5	14.0	30.0	11.5
