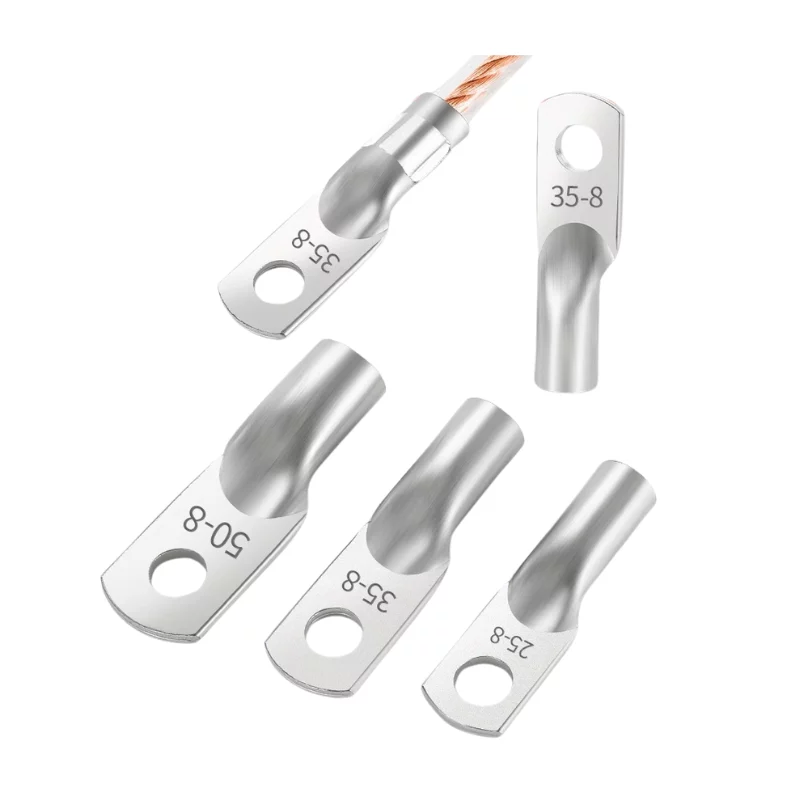

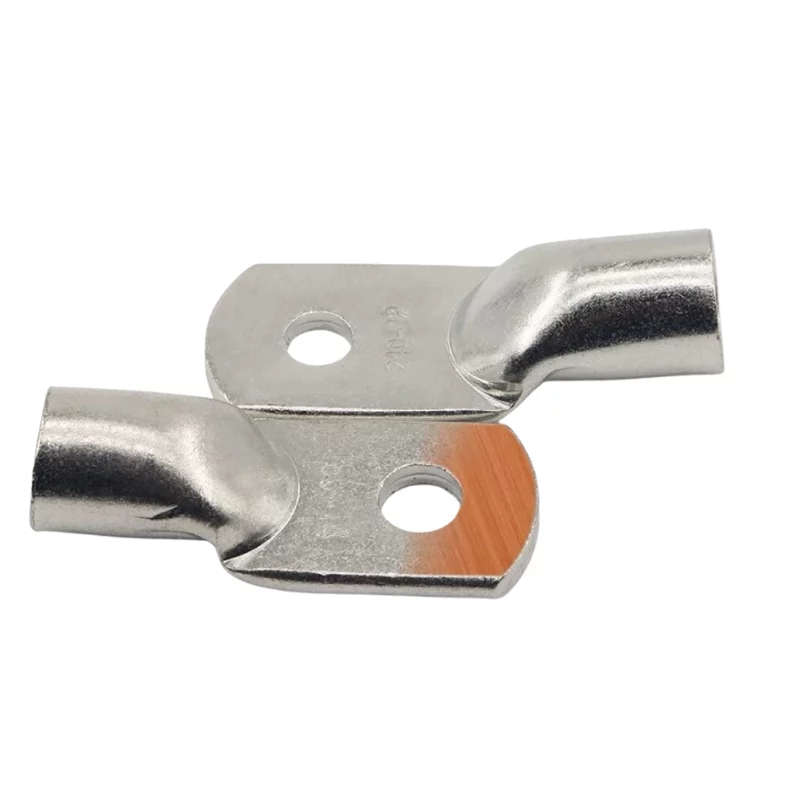

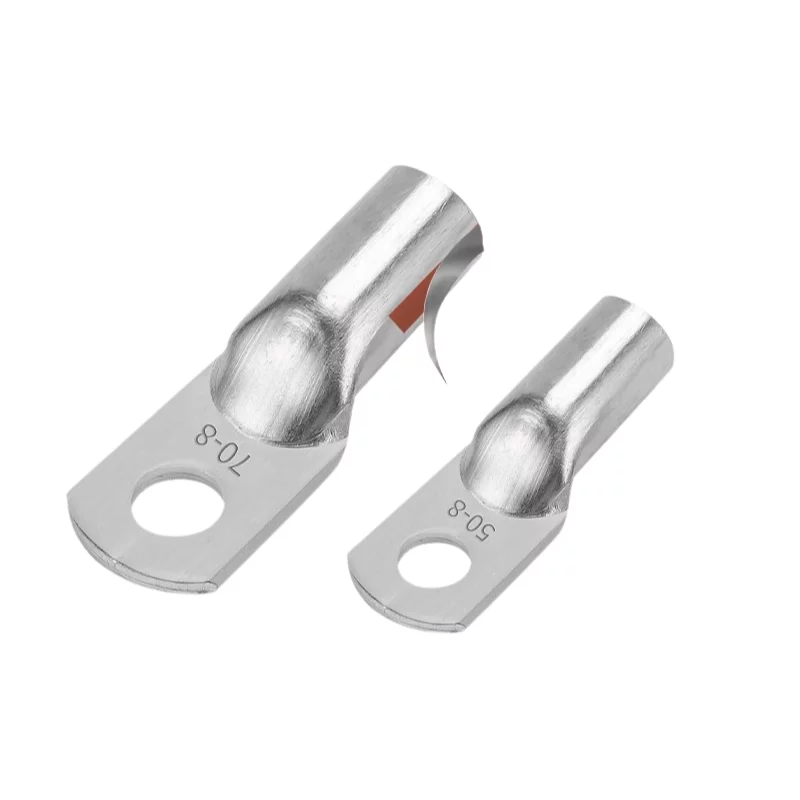

Tin-plated surface, resistant to oxidation. Uses T3 grade copper substrate to ensure high conductivity.
Available in a wide range of styles.

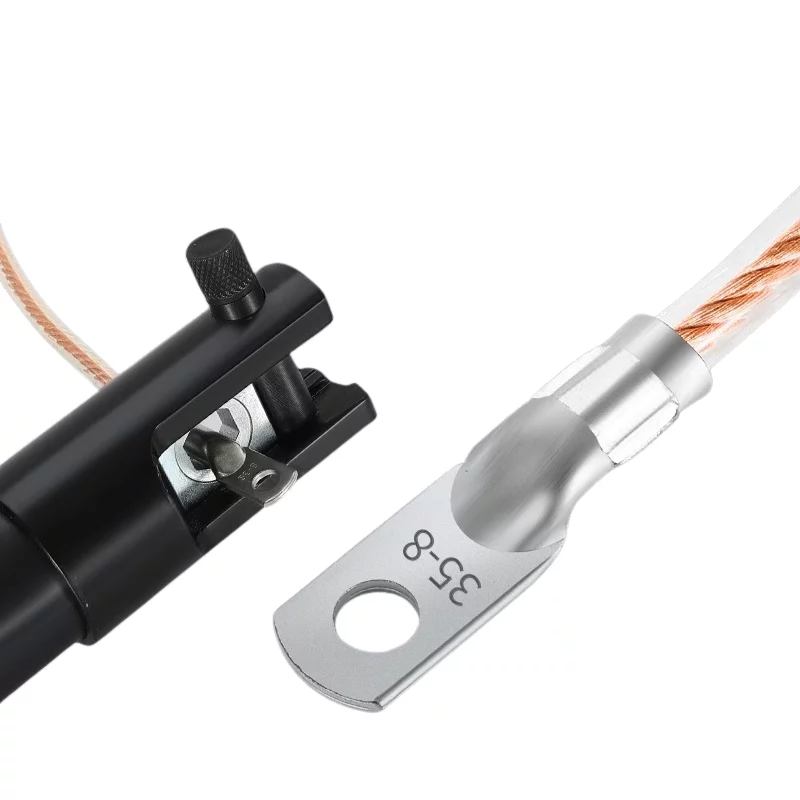

Secure wiring ensures a firm installation. Easy to use, suitable for various applications; a single connection provides a secure connection, requiring no maintenance.
Factory direct supply, complete specifications, quality guaranteed. OEM/ODM services and attentive customer service are available.

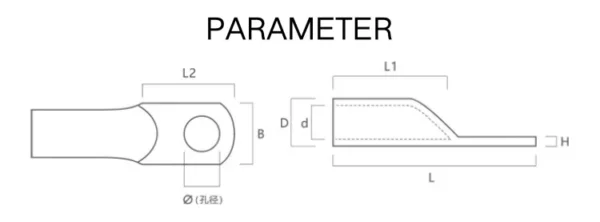

| Unit:mm | |||||||||
| Model number |
Wire area |
Screw aperture |
L L1 | L2 | B | H D d | |||
| JG6-6 | 6mm² | 6.5 | 33.1 | 15.6 | 15.1 | 9.7 | 1.2 | 6 | 4.7 |
| JG6-8 | 6mm² | 8.5 | 33.5 | 15.6 | 14.4 | 12.1 | 0.9 | 6 | 4.7 |
| JG10-6 | 10mm² | 6.5 | 37.5 | 15.5 | 18.7 | 11.6 | 1.8 | 8 | 6.4 |
| JG10-8 | 10mm² | 8.5 | 37.5 | 15.5 | 18.7 | 11.6 | 1.6 | 8 | 6.4 |
| JG16-6 | 16mm² | 6.5 | 41 | 17.6 | 20.2 | 13.1 | 2 | 9 | 7.2 |
| JG16-8 | 16mm² | 8.5 | 41 | 16.5 | 20.7 | 13.5 | 1.8 | 9 | 7.2 |
| JG16-10 | 16mm² | 10.5 | 41 | 16.7 | 20.2 | 14.7 | 1.6 | 9 | 7.2 |
| JG25-8 | 25mm² | 8.5 | 41 | 20 | 23.4 | 14.7 | 2.1 | 10 | 8 |
| JG25-10 | 25mm² | 10.5 | 45.5 | 21.7 | 22.2 | 14.7 | 2.1 | 10 | 8 |
| JG35-8 | 35mm² | 8.5 | 48.3 | 22.1 | 21.7 | 16.1 | 2.3 | 11 | 8.8 |
| JG35-10 | 35mm² | 10.5 | 52.2 | 22.2 | 24.9 | 16.3 | 2.3 | 11 | 8.8 |
| JG35-12 | 35mm² | 12.5 | 49.2 | 23.3 | 22.2 | 16.3 | 2.3 | 11 | 8.8 |
| JG50-8 | 50mm² | 8.5 | 50.4 | 21.3 | 24.7 | 19 | 2.6 | 13 | 10.4 |
| JG50-10 | 50mm² | 10.5 | 51.2 | 21.1 | 24.7 | 18.9 | 2.7 | 13 | 10.4 |
| JG50-12 | 50mm² | 12.5 | 51.1 | 21.4 | 24.5 | 18.9 | 2.5 | 13 | 10.4 |
| JG70-8 | 70mm² | 8.5 | 59.4 | 26.2 | 25.7 | 21.9 | 2.9 | 15 | 12.1 |
| JG70-10 | 70mm² | 10.5 | 59.7 | 25.5 | 26.1 | 21.9 | 2.9 | 15 | 12.1 |
| JG70-12 | 70mm² | 12.5 | 59.2 | 25.7 | 26.4 | 21.9 | 2.9 | 15 | 12.1 |
| JG95-8 | 95mm² | 8.5 | 63.1 | 26.3 | 26.8 | 24.7 | 3.5 | 17 | 13.6 |
| JG95-10 | 95mm² | 10.5 | 63 | 26.8 | 27.6 | 24.8 | 3.5 | 17 | 13.6 |
| JG95-12 | 95mm² | 12.5 | 63.8 | 26.9 | 27.9 | 24.7 | 3.5 | 17 | 13.6 |
| JG120-10 | 120mm² | 10.5 | 72.2 | 34.6 | 30.6 | 27.4 | 4 | 19 | 15 |
| JG120-12 | 120mm² | 12.5 | 72 | 32.7 | 31 | 27.4 | 4.1 | 19 | 15 |
| JG120-14 | 120mm² | 14.5 | 73.2 | 30.8 | 37.9 | 27.1 | 4.2 | 19 | 15 |
| JG150-10 | 150mm² | 10.5 | 79 | 34.9 | 36.7 | 30.6 | 4.2 | 21 | 17 |
| JG150-12 | 150mm² | 12.5 | 77.7 | 37.5 | 33 | 30.6 | 4.2 | 21 | 17 |
| JG150-14 | 150mm² | 14.5 | 77.5 | 36.7 | 34.2 | 30.6 | 4.2 | 21 | 17 |
| JG185-12 | 185mm² | 12.5 | 87.8 | 36 | 42.4 | 33.7 | 4.2 | 23 | 19 |
| JG185-16 | 185mm² | 16.5 | 86.6 | 34.9 | 42.6 | 33.7 | 4.1 | 23 | 19 |
| JG240-12 | 240mm² | 12.5 | 93 | 37.2 | 47.2 | 37.7 | 5.1 | 26 | 21 |
| JG240-16 | 240mm² | 16.5 | 93.5 | 37.3 | 47 | 37.8 | 5.1 | 26 | 21 |
| JG300-16 | 300mm² | 16.5 | 102.5 | 60.7 | 52.5 | 43.5 | 6.1 | 30 | 24 |
Feel free to drop us a message if you have any open questions and would like to work with us.
As an excellent supplier, our company has ability to offer : Premium Quality, 24/7 Support, OEM/ODM
