DT copper nose

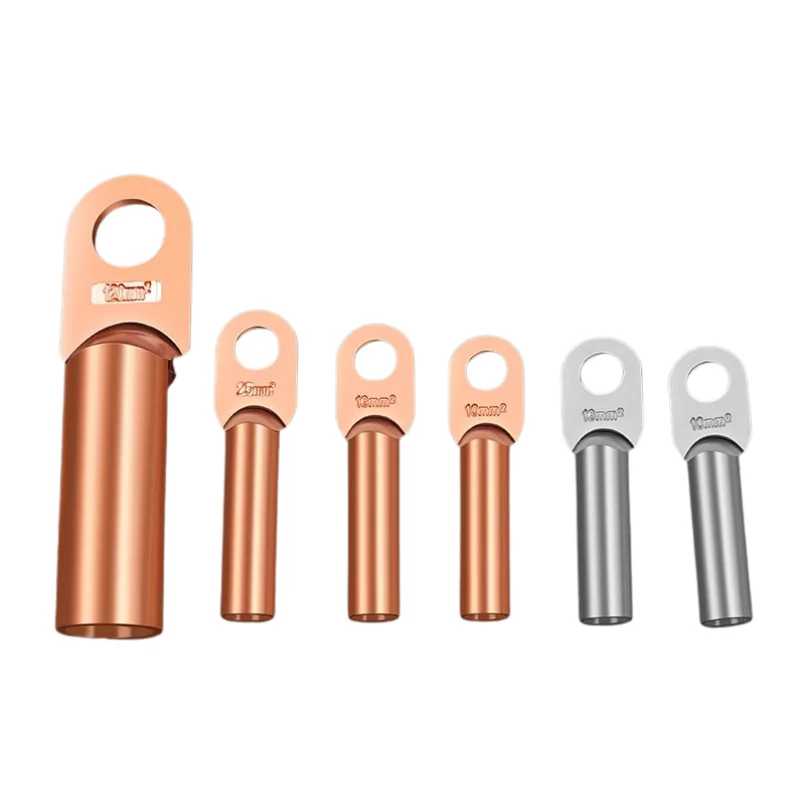

Tin-plated copper substrate:

Tin-plated surface, resistant to oxidation. Uses T3 grade copper substrate to ensure high conductivity.

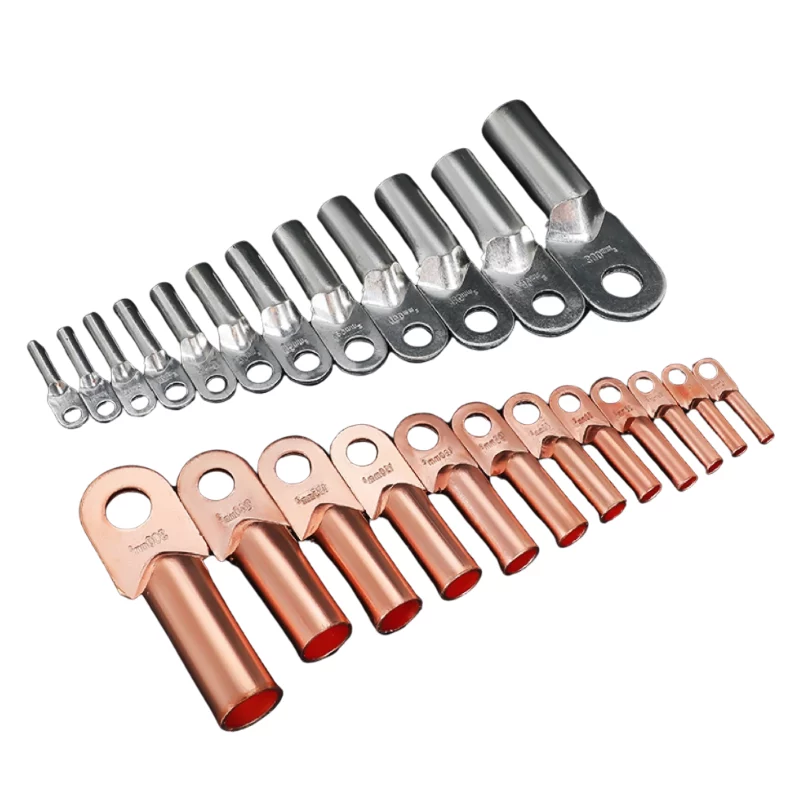

Variety of styles and applications:

Available in a wide range of styles.

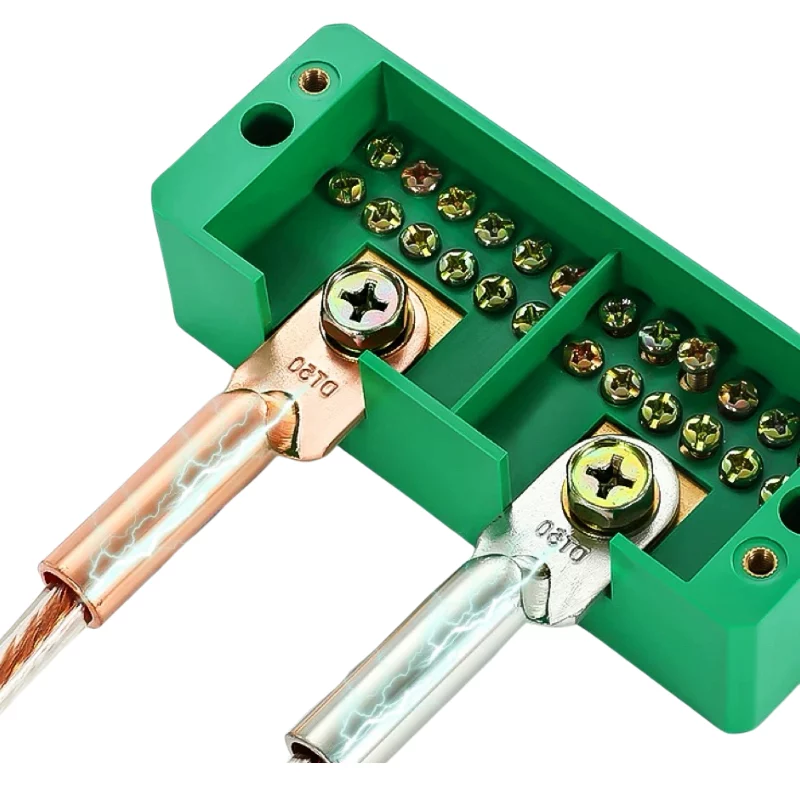

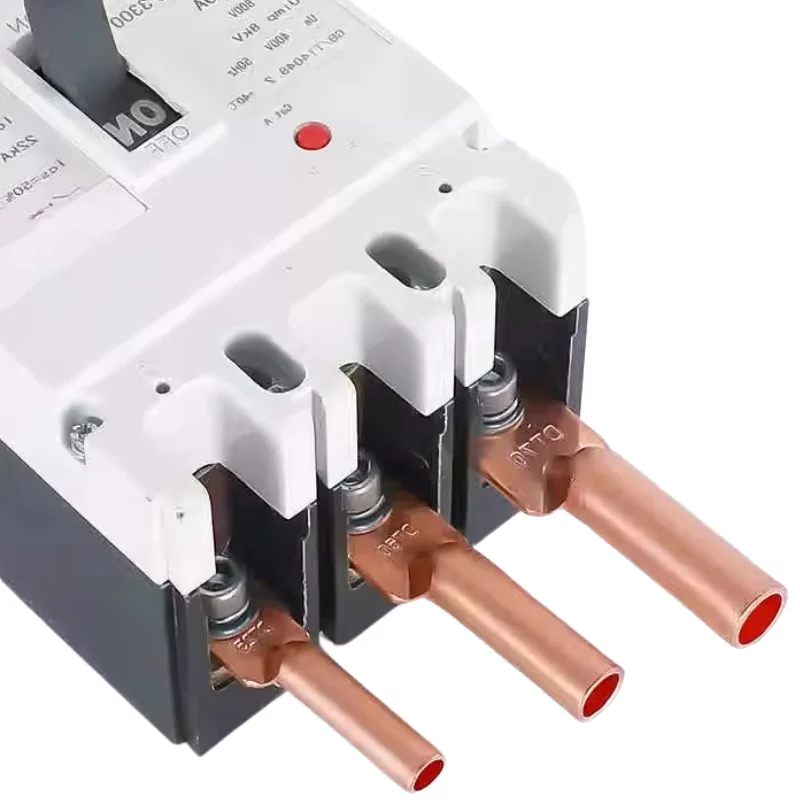

Solid wiring and easy installation:

Secure wiring ensures a firm installation. Easy to use, suitable for various applications; a single connection provides a secure connection, requiring no maintenance.

Quality and service guarantee:

Factory direct supply, complete specifications, quality guaranteed. OEM/ODM services and attentive customer service are available.

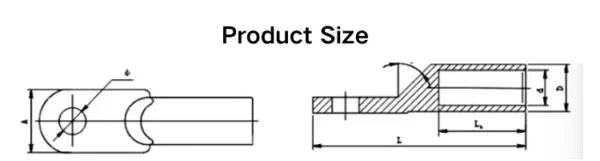

Model	Dimensions(mm)
Model	φ	D	d	L	L1	A
DT-10	8.5	9	5.5	67	31	16
			5.5
DT-16	8.5	10	6.5	67	31	16
DT-16
DT-25	8.5	11	7	70	34	18
DT-35	10.5	12	8.5	79	36	20.5
DT-35	10.5	12	8.5
DT-50	10.5	14	9.5	87	40	23
DT-70	12.5	16	11.5	95	42	26
DT-70	12.5	16			42	26
DT-95	12.5	18	13.5	105	46	28
DT-120	14.5	20	15	112	48	30
DT-120	14.5	20	15	112	48
DT-150	16.5	22	16.5	118	52	34
DT-150	16.5	22	16.5
DT-185	16.5	25	18.5	125	55	37
DT-240	21	27	21	136	60	40
			21
DT-300	21	30	23	148	65	45
DT-300
DT-400	21	32	26	165	70	50
DT-500		35	29	185	75	60
DT-500		35		185	75
DT-630		45	34	220	85	80
DT-630
DT-800		50	38	260	85	100
